use
The machine can automatically complete lifting, holding, mixing, down, and all other actions with an automatic upgrade hopper mixer and mixing hopper plurality of different specifications, can meet the high-volume, multi-species mixing requirements, the total pharmaceutical is mixed ideal equipment; Also widely used in the pharmaceutical, chemical, food and other wilderness.
working principle

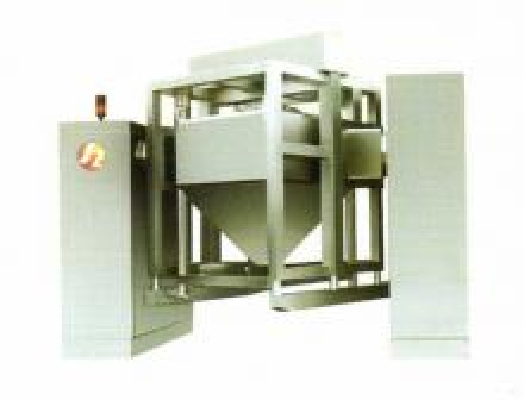

Machine consists of stand, rotor drive system, improve drop system, brake system and control system; at work, mixing bucket onto the rotary body into the automatic operation of the program input parameters have been set group program code, press on the touch screen "OK" button, you can automatically enhance the mixing hopper in place, and automatic clamping; the PLC control system has been clamping signal to drive the system to work, according to the set time, mixing speed; achieve the set parameters , vertical rotors will automatically stop while braking system, the end of mixing; then press the "down" key, the rotary body mixing hopper fall into place, automatically stops, and print process data; mixing hopper exit go to the next step .
Feature
This machine reasonable structure, stable performance, easy operation, convenient adjustment of process parameters, machine no dead ends, no exposed screws; rotors (mixing hopper) with a 30 ° angle to the axis of rotation, mixed material in the hopper with the rotors turning outer while fighting along the wall to make tangential motion, flip and a strong high-speed tangential movement to achieve the best effect of mixing; adopts PLC automatic control and safety devices and set up an infrared device to prevent misuse of the butterfly valve, to ensure production safety; materials by different processes in the same vessel segments do not need frequent feeding turn, feeding and other procedures to effectively control dust and cross pollution, reduce the loss of materials, control of layered materials, optimize the production process, in full compliance with GMP requirements for pharmaceutical production.
